The MTJNR is a right-hand external turning toolholder built to ISO standard, designed for use with TNMG triangular negative-rake inserts. The top-clamp system holds the insert securely under heavy cutting loads, delivering consistent performance, extended tool life, and reliable surface finish across a range of materials and applications.
The 60° triangular insert geometry provides three usable corners per side – six in total – making TNMG inserts an economical choice for general-purpose turning. The negative rake promotes edge strength and stability, particularly in interrupted cuts and on harder workpiece materials.
Available in two shank sizes and two insert capacities to suit different machine tool requirements and depths of cut.
Specifications
- Insert compatibility: TNMG (60° triangle, double-sided negative rake)
- Clamping style: Top clamp
- Hand of cut: Right-hand
- Standard: ISO / DIN
Variants
- MTJNR2020K16 – 20 × 20mm shank, TNMG 16 insert

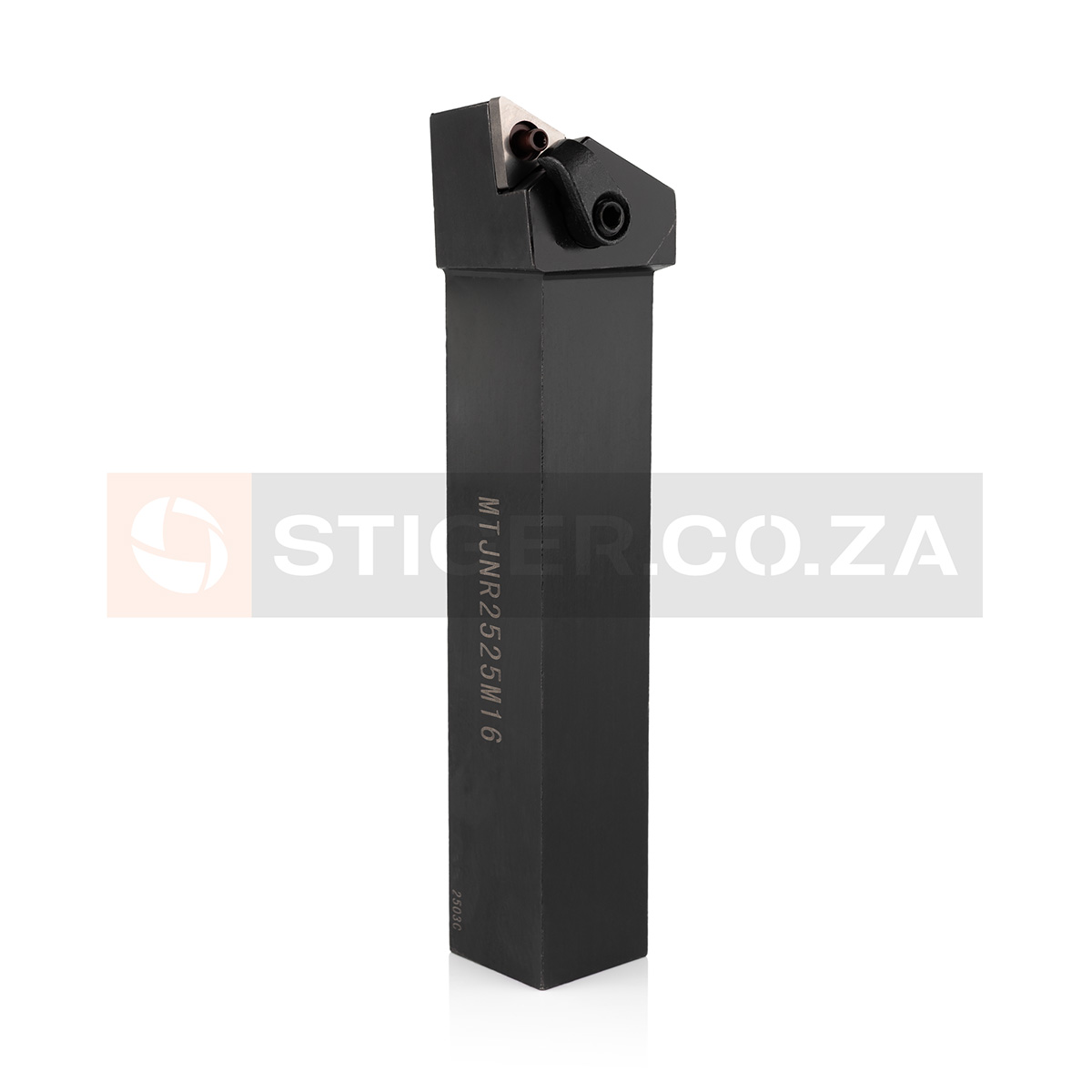

- MTJNR2525M16 – 25 × 25mm shank, TNMG 16 insert
- MTJNR2525M22 – 25 × 25mm shank, TNMG 22 insert
Applications
General external turning · Facing · Step turning · Profiling on CNC and conventional lathes
