One insert series, three widths, two cutting edges – engineered to cover your small-bore internal grooving requirements without compromising on precision, edge life, or value.
Available Sizes
| Variant | Insert Width |
|---|---|
| 8GR100 SM015 | 1.0mm |
| 8GR150 SM015 | 1.5mm |
| 8GR200 SM015 | 2.0mm |
Double-sided. Double the value.
Each insert carries two usable cutting edges – when the first edge is done, flip it and keep running. Half the tooling cost per edge without any compromise on geometry or performance. In production environments, that adds up fast.
SM015 Grade – Built to last in the cut.
The SM015 grade combines a fine-grain carbide substrate for sharp, durable cutting edges that hold tolerance longer. Whether you’re running a single prototype or a full production batch, consistent edge quality means consistent groove width – no creep, no drift between parts.
Select the width your groove demands.
- 1.0mm – narrow O-ring seats, tight undercuts, and precision retaining features
- 1.5mm – mid-range groove profiles for seals, snap rings, and recesses
- 2.0mm – wider groove seats and broader retaining ring profiles (Tmax for 10mm holder)
Where it performs.
- O-ring and seal grooves in small hydraulic and pneumatic components
- Snap ring and retaining ring grooves in small-diameter bores
- Internal undercuts and recesses in close-tolerance assemblies
- Steel, stainless steel, cast iron, aluminium, and non-ferrous materials

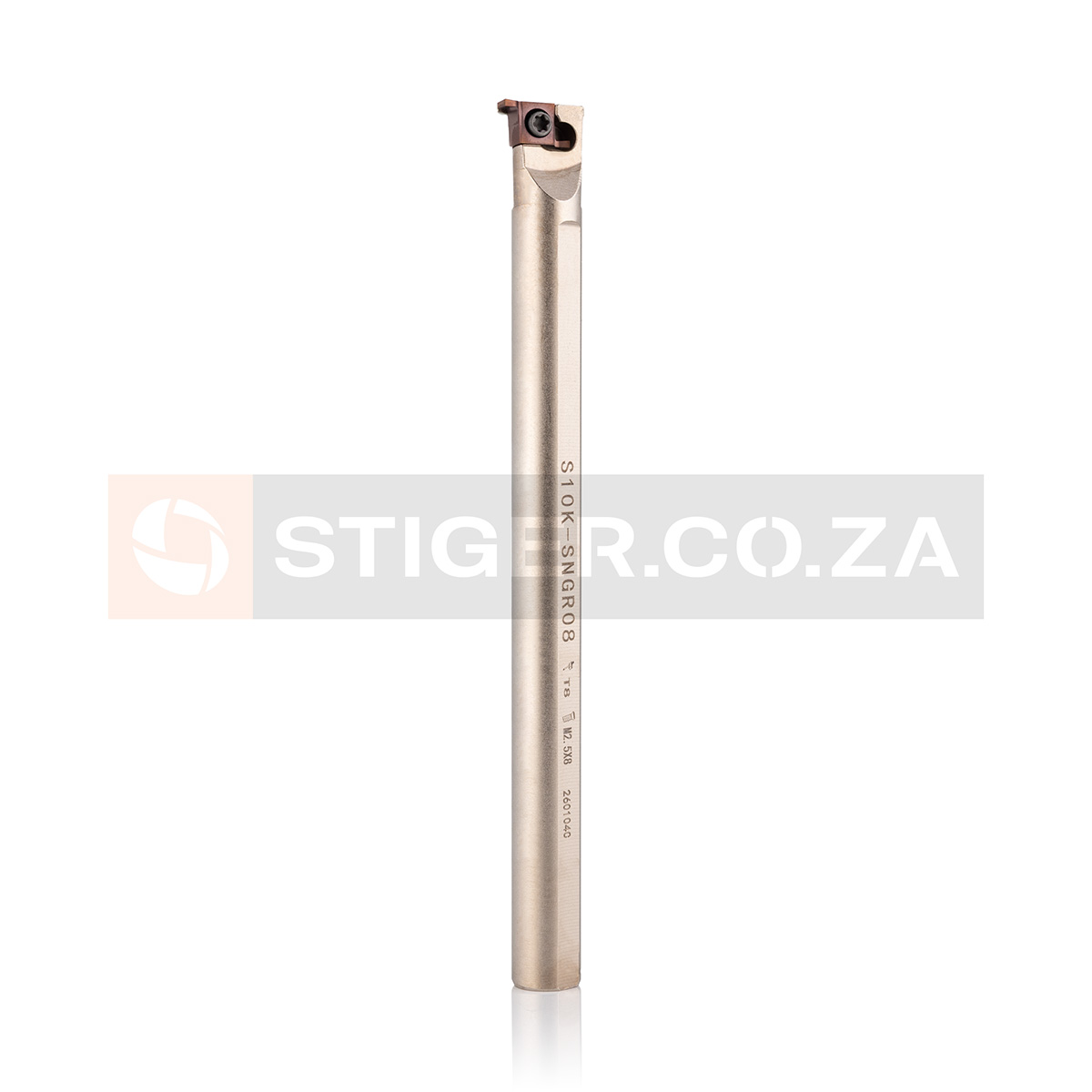

Pairs with: 10mm Internal Grooving Holder (O/L 125mm) (Holder not included)
